【8】Construction Supervision For The Main Drainage System Project To Mitigate Flooding In The Buriram Urban Area (Phase 2), Mueang Buriram District, Buriram Province (BRR2 6902CS)

【8】Construction Supervision For The Main Drainage System Project To Mitigate Flooding In The Buriram Urban Area (Phase 2), Mueang Buriram District, Buriram Province (BRR2 6902CS)

• Location :

  Buriram Urban Area, Mueang Buriram District, Buriram Province; Located Within The Jurisdictions Of Buriram City Municipality And Chumhet Town Municipality

• General Information :

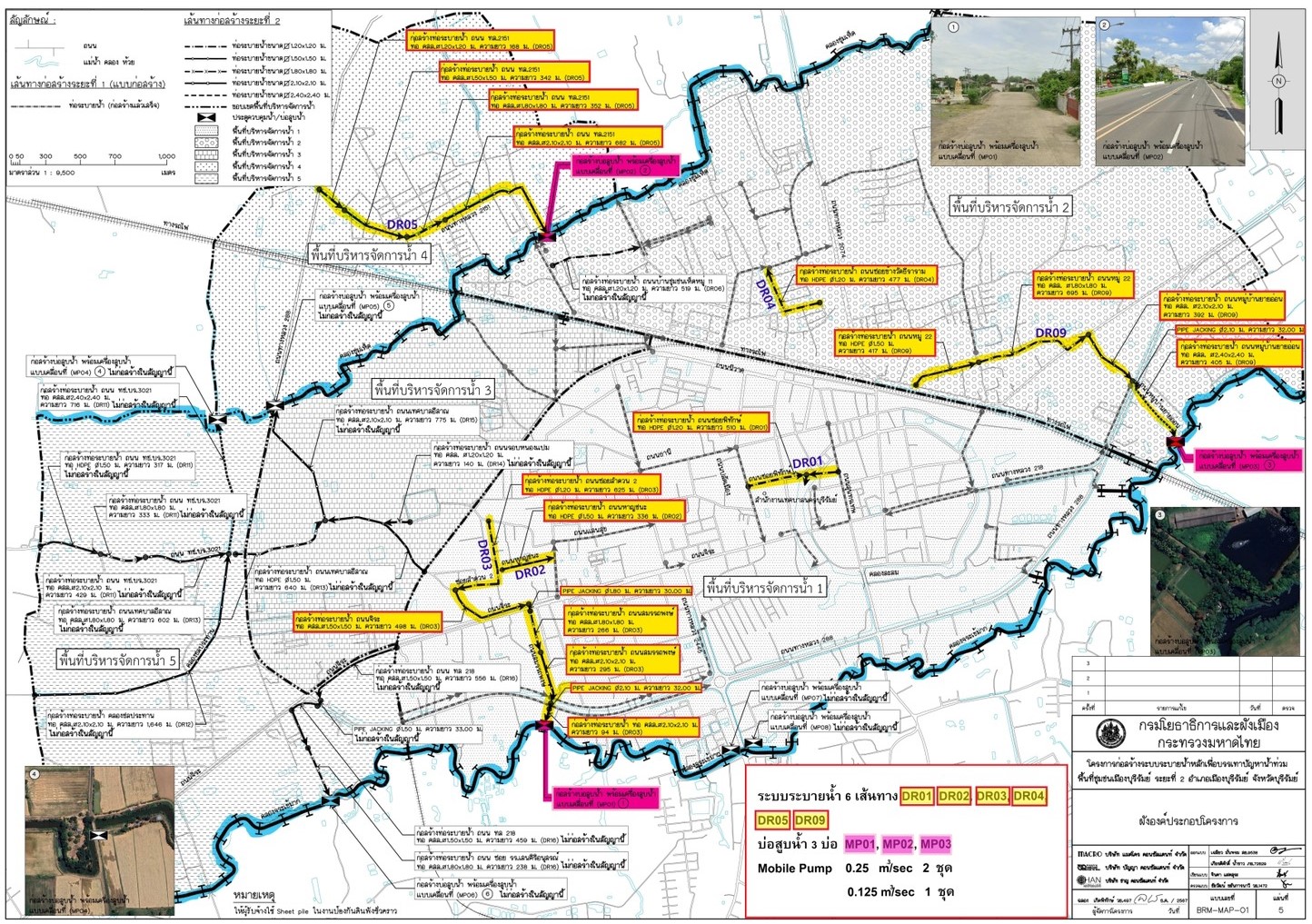

  Comprising Construction Of Drainage Systems Along 6 Routes, A Pumping Station, And Associated Machinery And Equipment, Including: 1) Drainage Pipe Construction On Soi Phithak Road (Dr01) Hdpe Drainage Pipe, 1.20 M Diameter, From Km 0+000.00 To Km 0+510.00 (510 Meters) 2) Drainage Pipe Construction On Han Chana Road (Dr02) Hdpe Drainage Pipe, 1.50 M Diameter, From Km 0+000.00 To Km 0+336.00 (336 Meters) 3) Drainage Pipe Construction: Chumchon Kho Klang Road Soi 4 / Jira Road / Samatthapong Road (Dr03) Hdpe Drainage Pipe, Dia. 1.20 M, From Km. 0+000.00 To Km. 0+625.00 (625 Meters), Reinforced Concrete Drainage Pipe, Size 1.50x1.50 M, From Km. 0+625.00 To Km. 1+123.00 (498 Meters), Pipe Jacking, Dia. 1.80 M, From Km. 1+123.00 To Km. 1+153.00 (30 Meters), Reinforced Concrete Drainage Pipe, Size 1.80x1.80 M, From Km. 1+153.00 To Km. 1+149.00 (266 Meters), Reinforced Concrete Drainage Pipe, Size 2.10x2.10 M, From Km. 1+149.00 To Km. 1+714.00 (295 Meters), Pipe Jacking, Dia. 2.10 M, From Km. 1+714.00 To Km. 1+746.00 (32 Meters), Reinforced Concrete Drainage Pipe, Size 2.10x2.10 M, From Km. 1+746.00 To Km. 1+840.00 (94 Meters) 4) Drainage Pipe Construction: Road Beside Wat Theeraram (Dr04) Hdpe Drainage Pipe, Dia. 1.20 M, From Km. 0+000.00 To Km. 0+477.00 477 Meters 5) Drainage Pipe Construction, Highway 2151 (Dr05) Reinforced Concrete Drainage Pipe, Size 1.20x1.20 M, From Km. 0+000.00 To Km. 0+168.00 168 Meters, Reinforced Concrete Drainage Pipe, Size 1.50x1.50 M, From Km. 0+168.00 To Km. 0+510.00 342 Meters, Reinforced Concrete Drainage Pipe, Size 1.80x1.80 M, From Km. 0+510.00 To Km. 0+862.00 352 Meters, Reinforced Concrete Drainage Pipe, Size 2.10x2.10 M, From Km. 0+862.00 To Km. 1+544.00 682 Meters 6) Drainage Pipe Construction, Moo 22 Road / Yai On Village Road (Dr09) Hdpe Drainage Pipe, Dia. 1.50 M, From Sta. 0+000.00 To Sta. 0+417.00 (417 Meters), Reinforced Concrete Drainage Pipe, Size 1.80x1.80 M, From Sta. 0+417.00 To Sta. 1+112.00 (695 Meters), Reinforced Concrete Drainage Pipe, Size 2.10x2.10 M, From Sta. 1+112.00 To Sta. 1+504.00 (392 Meters), Pipe Jacking, Dia. 2.10 M, From Sta. 1+504.00 To Sta. 1+536.00 (32 Meters), And Reinforced Concrete Drainage Pipe, Size 2.40x2.40 M, From Sta. 1+536.00 To Sta. 1+941.00 (405 Meters) 7) Pumping Station Construction Pumping Station (Mp01) Pumping Station (Mp02) Pumping Station (Mp03) 8) Machinery And Equipment Mobile Pump, Capacity 0.25 M³/S (2 Units), And Mobile Pump, Capacity 0.125 M³/S (1 Unit)

• Construction Cost :

  257.7 million baht.

• Owner :

  Department of Public Works and Town & Country Planning

• Design by :

  Macro Consultant Co., Ltd.

• Construction by :

  TS & TN Joint Venture.

• Completion Date: :

  16 August 2028

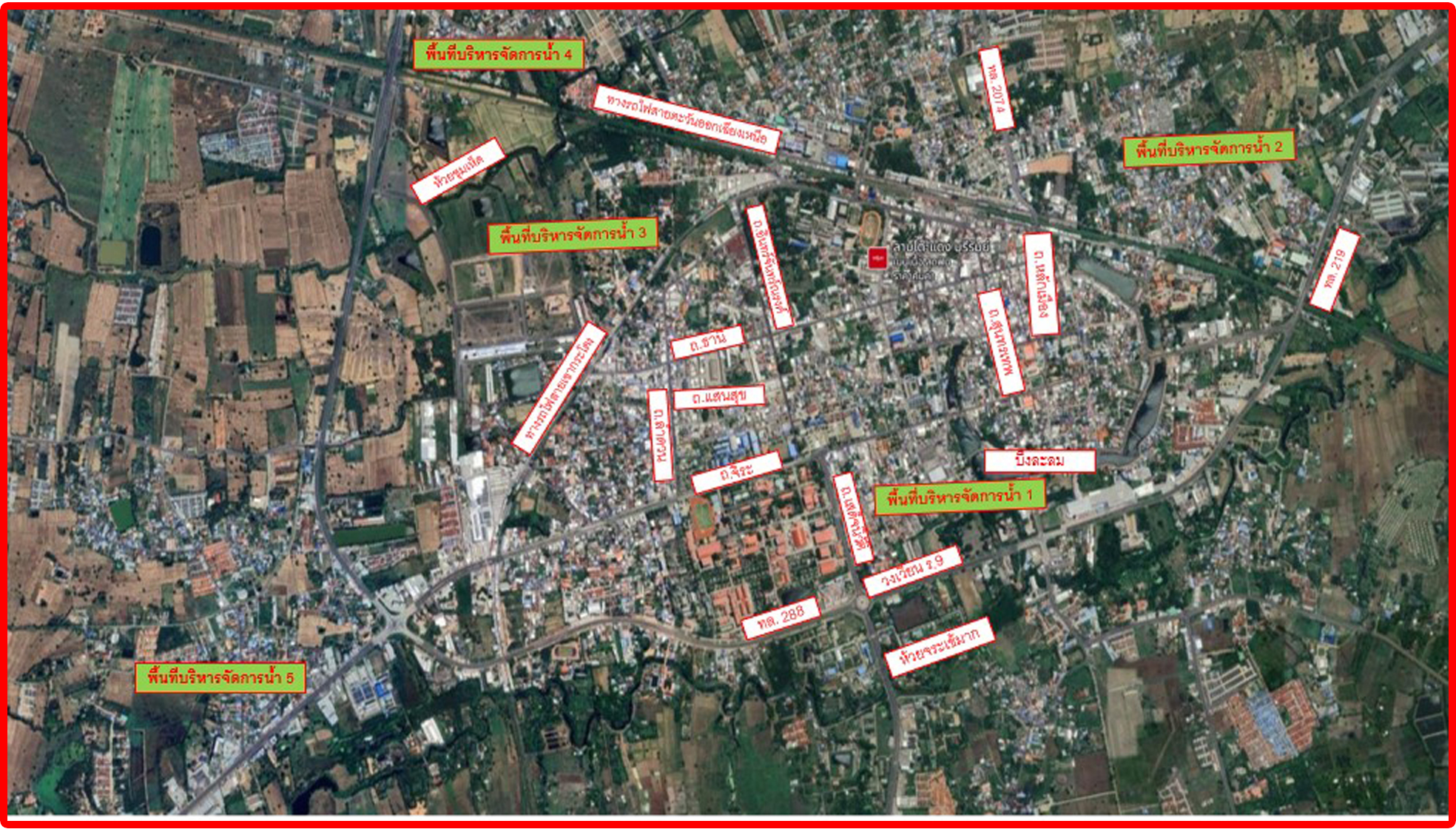

• Project Location Map
