【7】The Area Development And Landscape Improvement Project For The Riverside Community Along The Kok River, Tha Khao Plueak Subdistrict, Mae Chan District, Chiang Rai Province. (TKP 6904CS)

【7】The Area Development And Landscape Improvement Project For The Riverside Community Along The Kok River, Tha Khao Plueak Subdistrict, Mae Chan District, Chiang Rai Province. (TKP 6904CS)

• Location :

  Tha Khao Plueak Subdistrict, Mae Chan District, Chiang Rai Province.

• General Information :

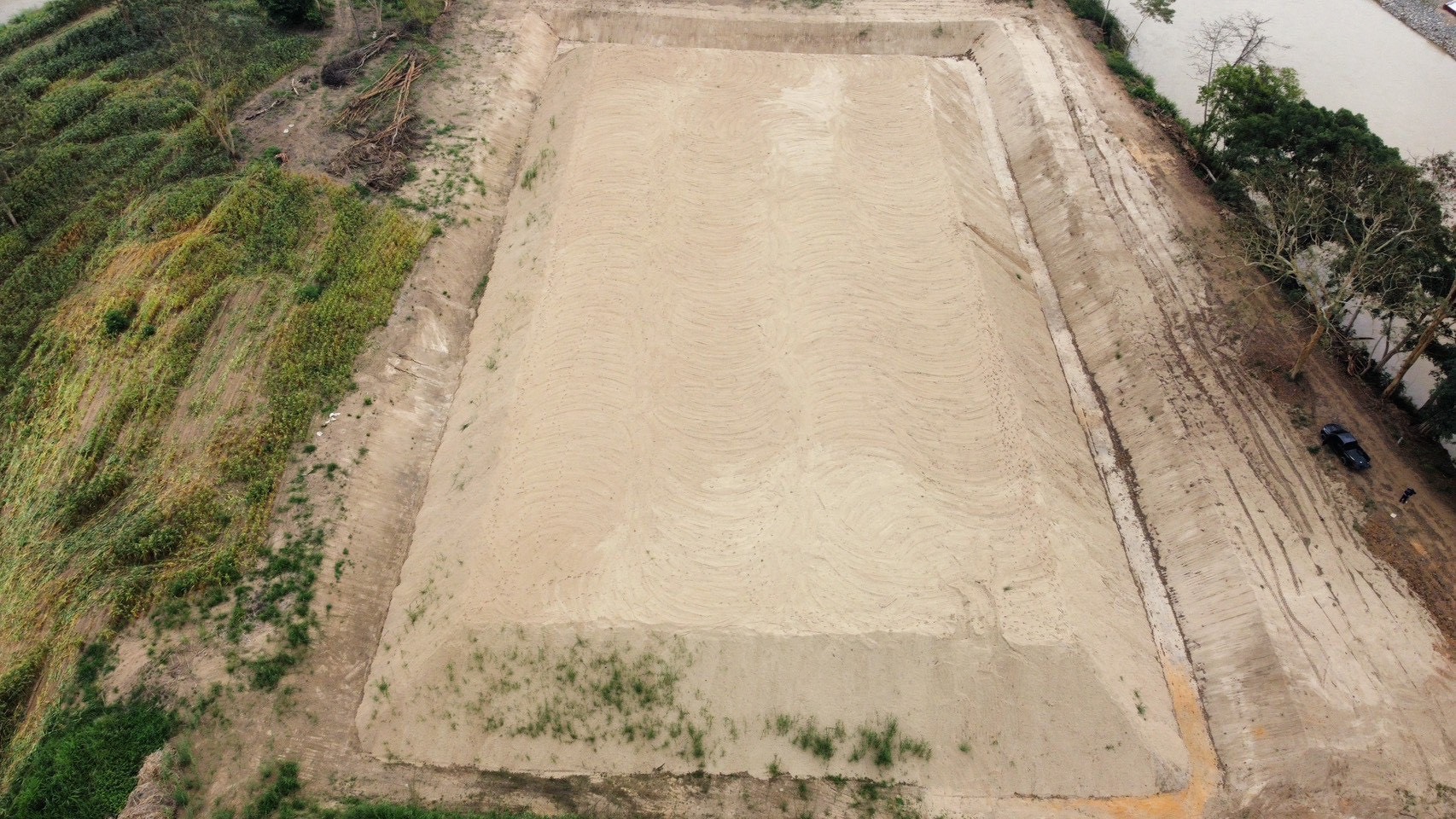

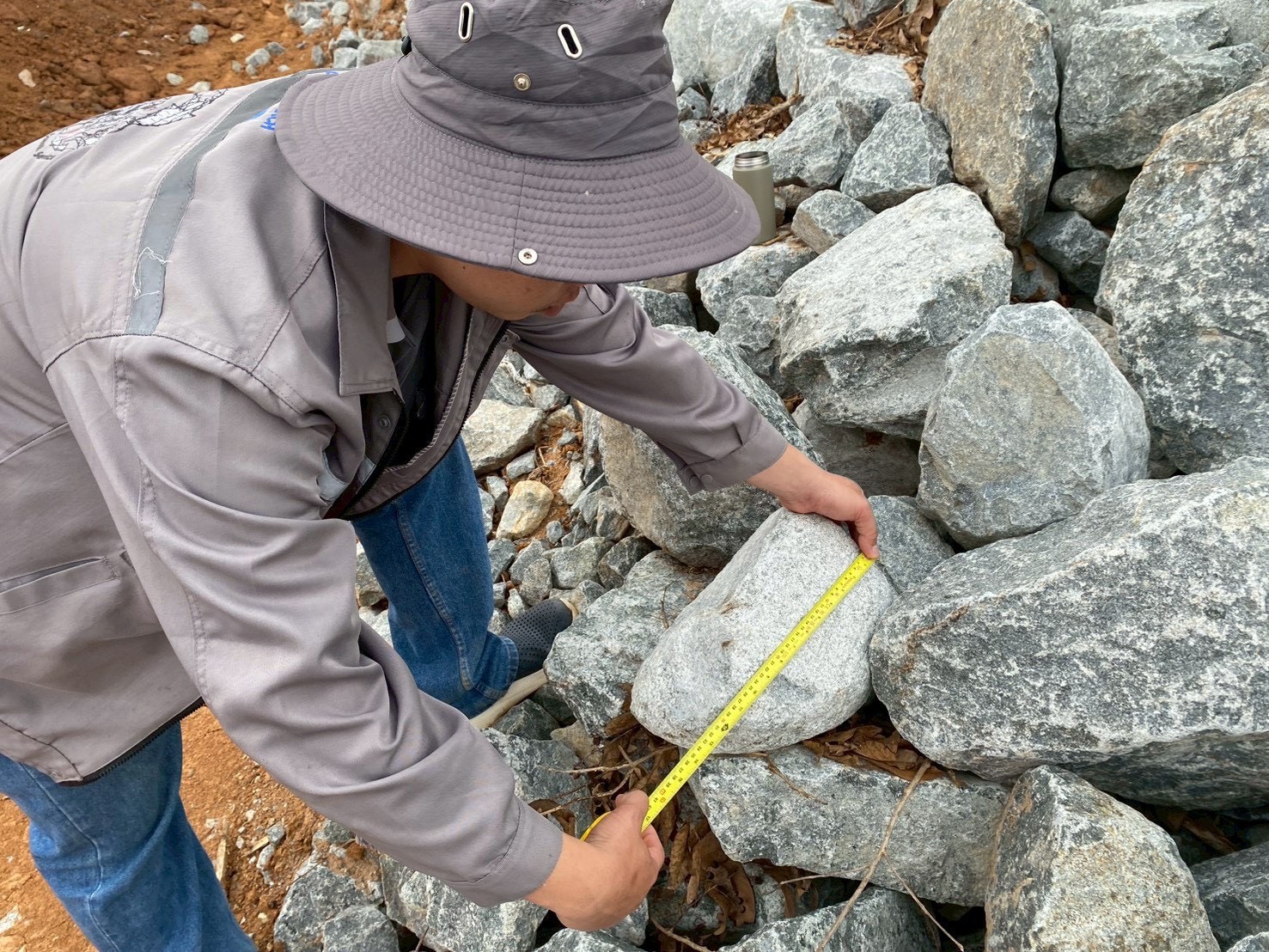

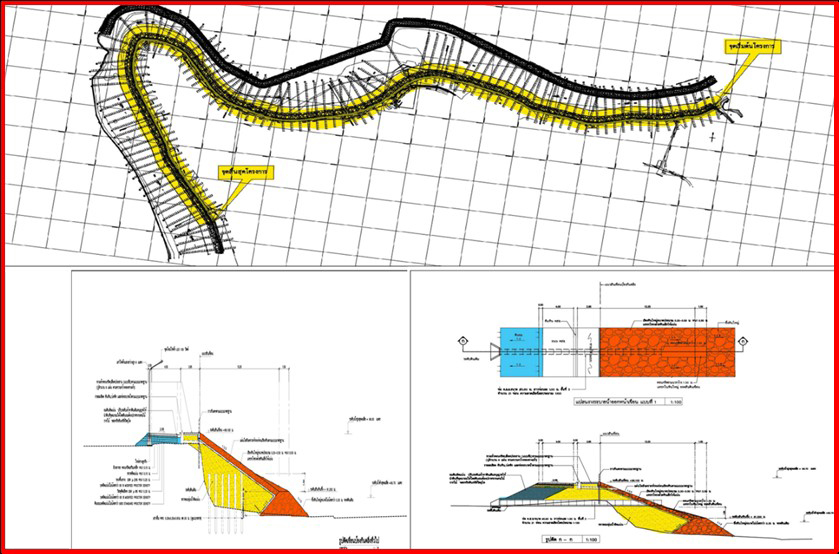

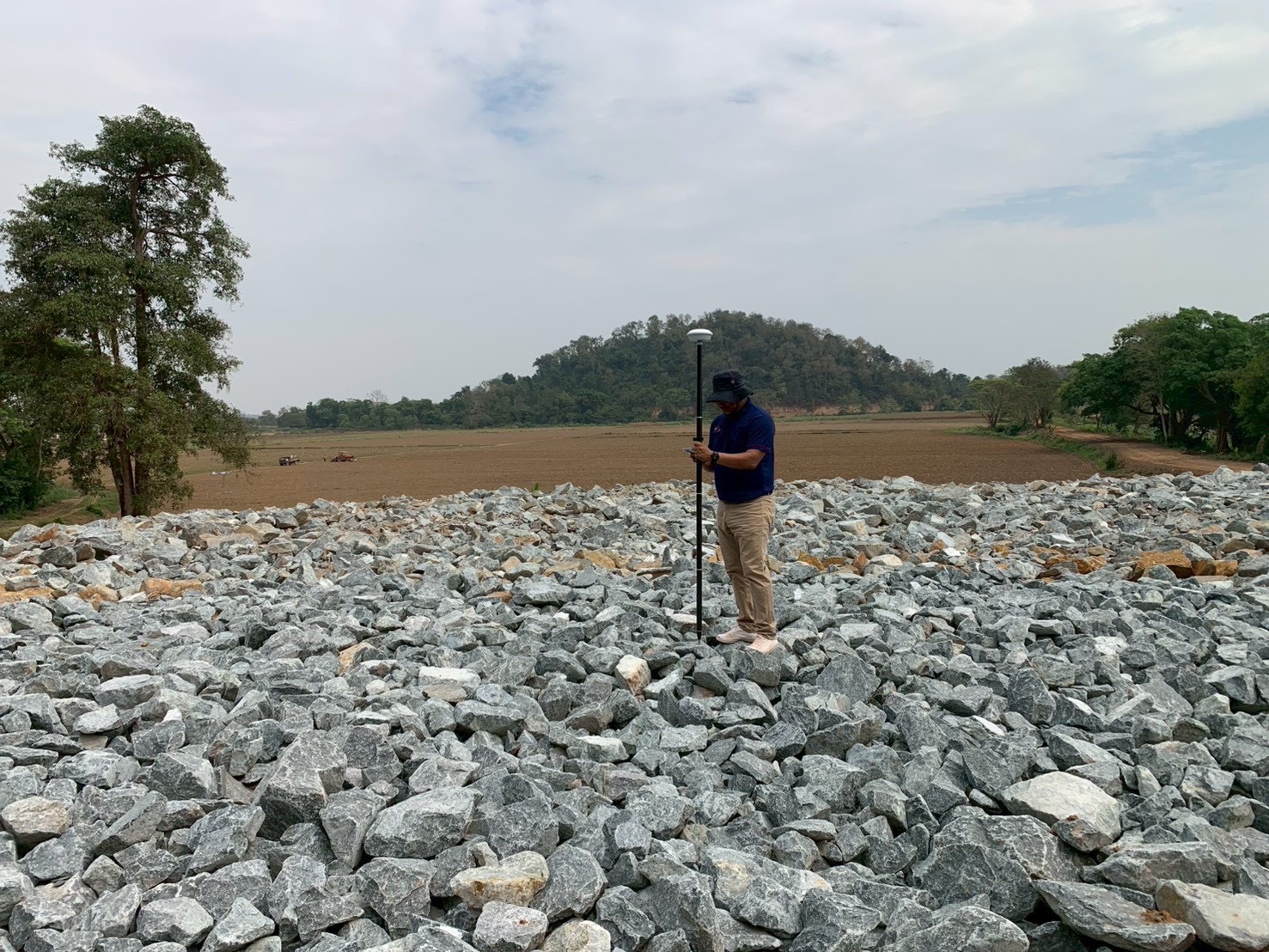

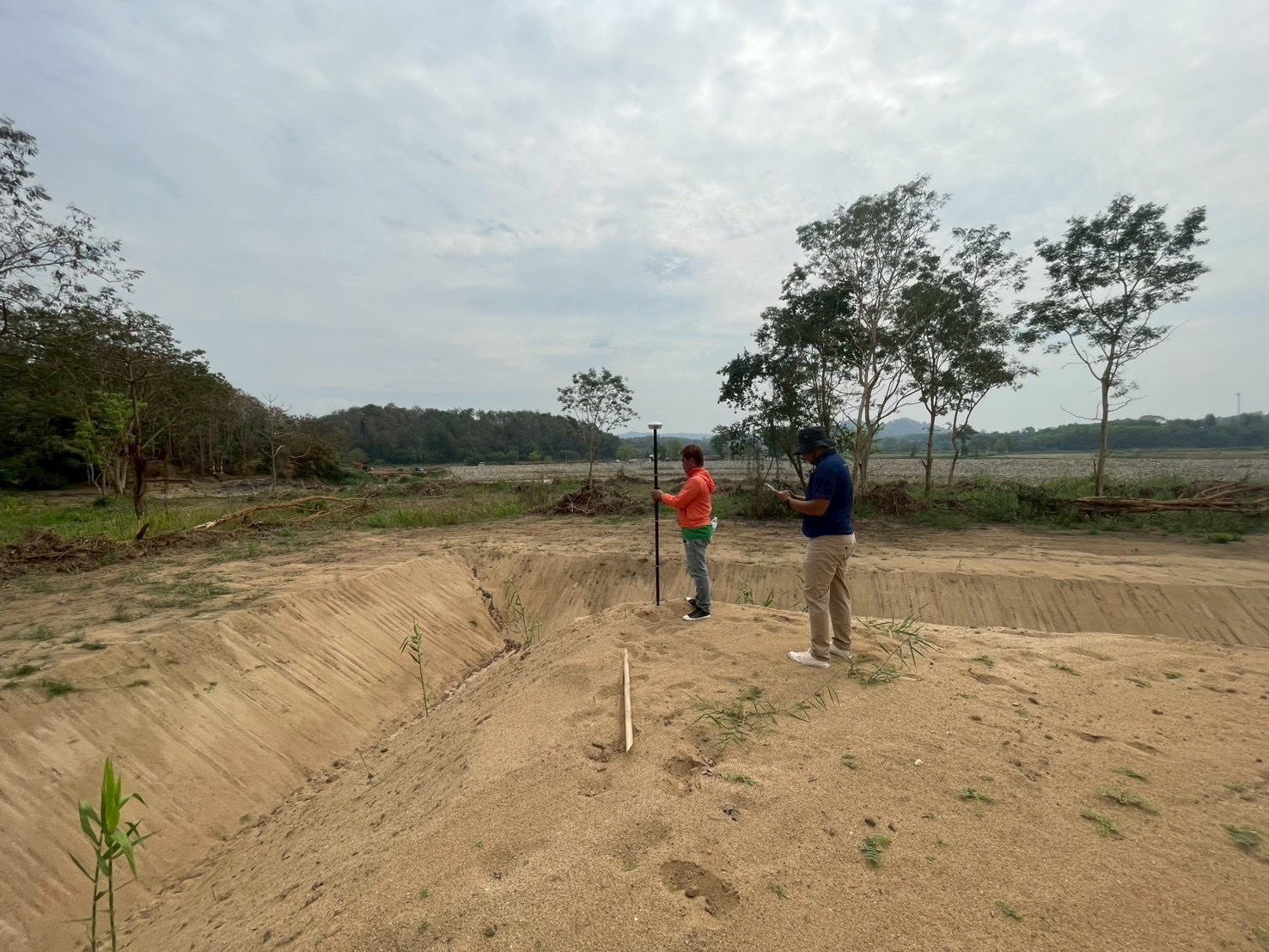

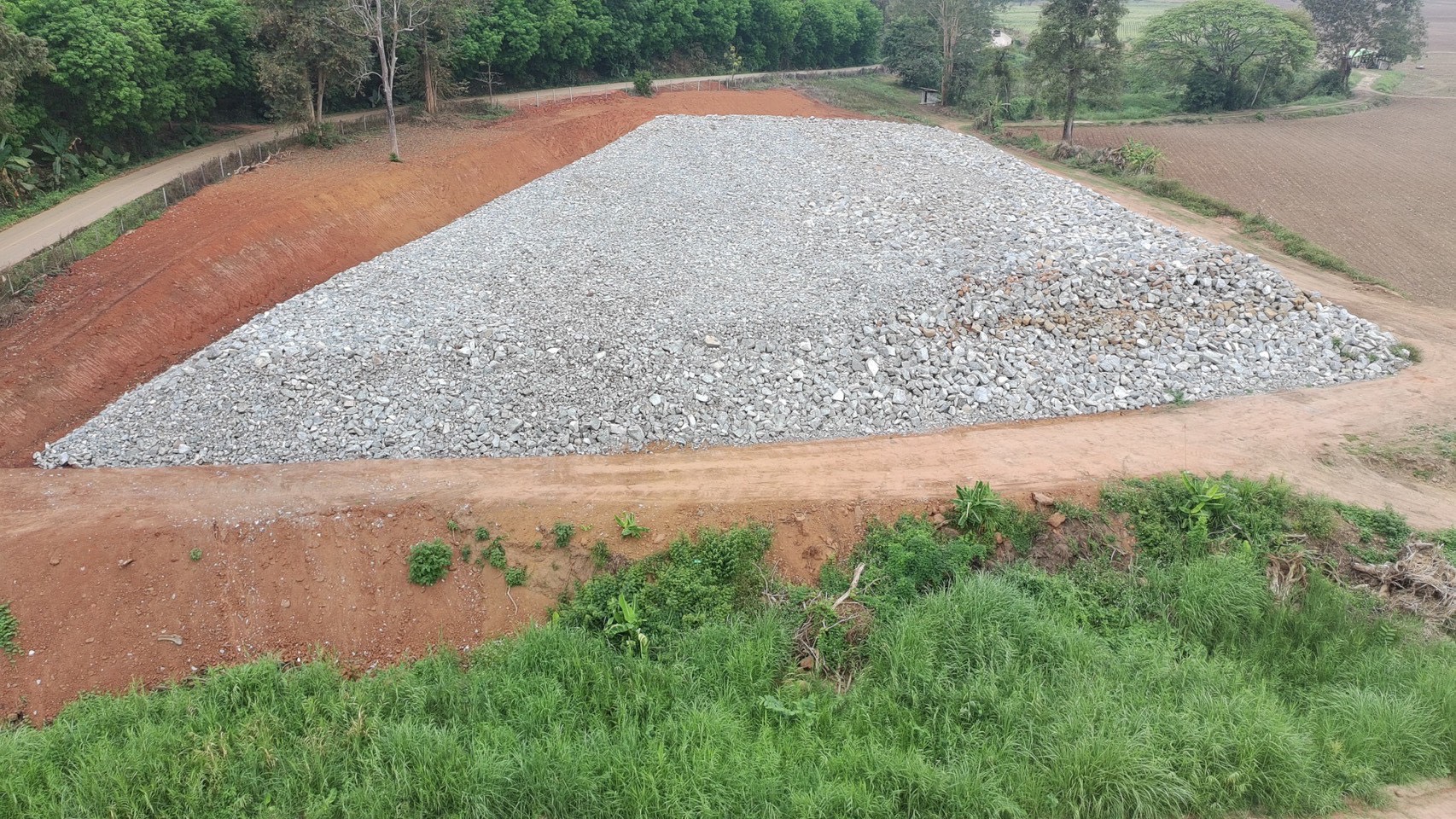

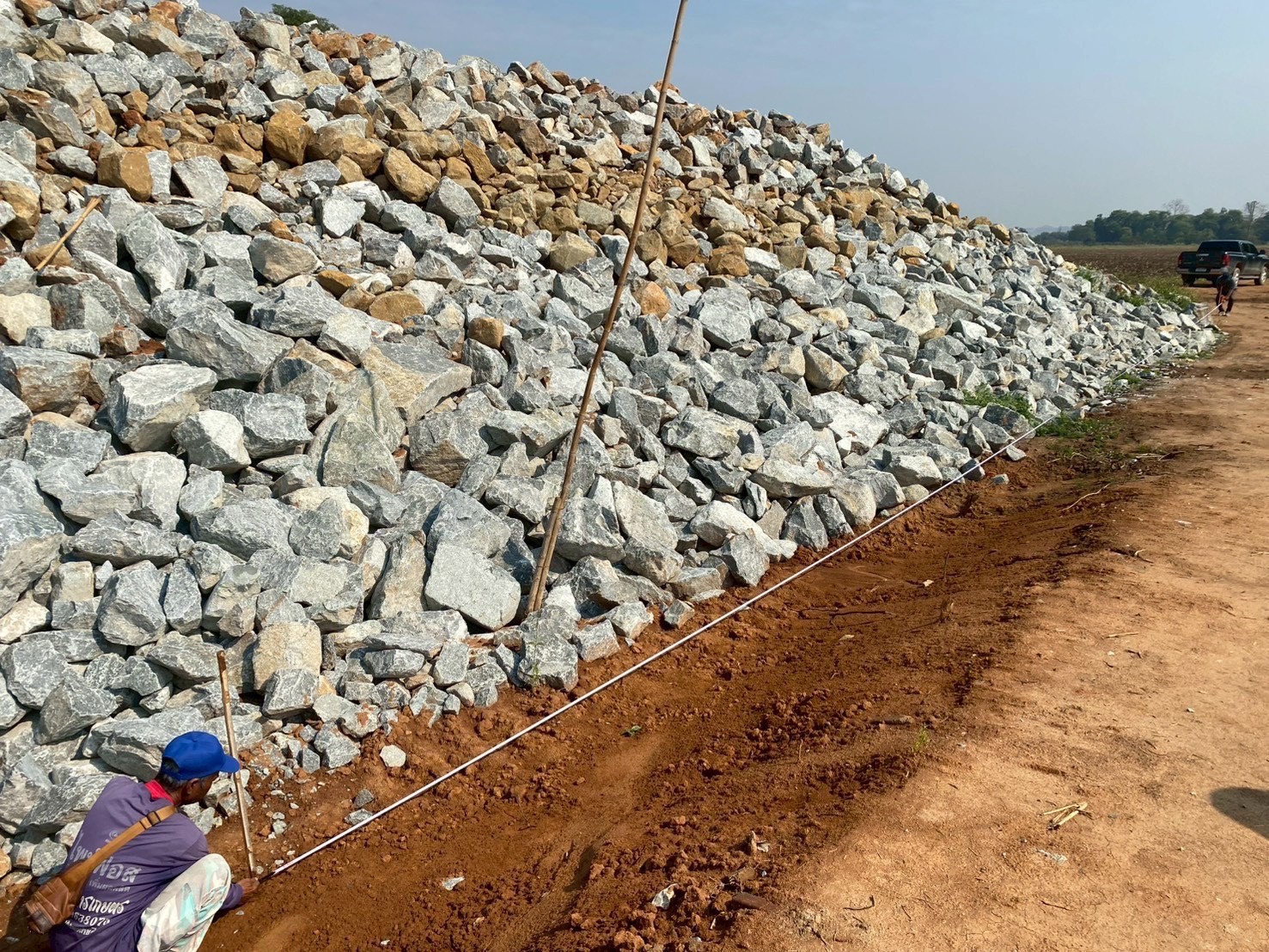

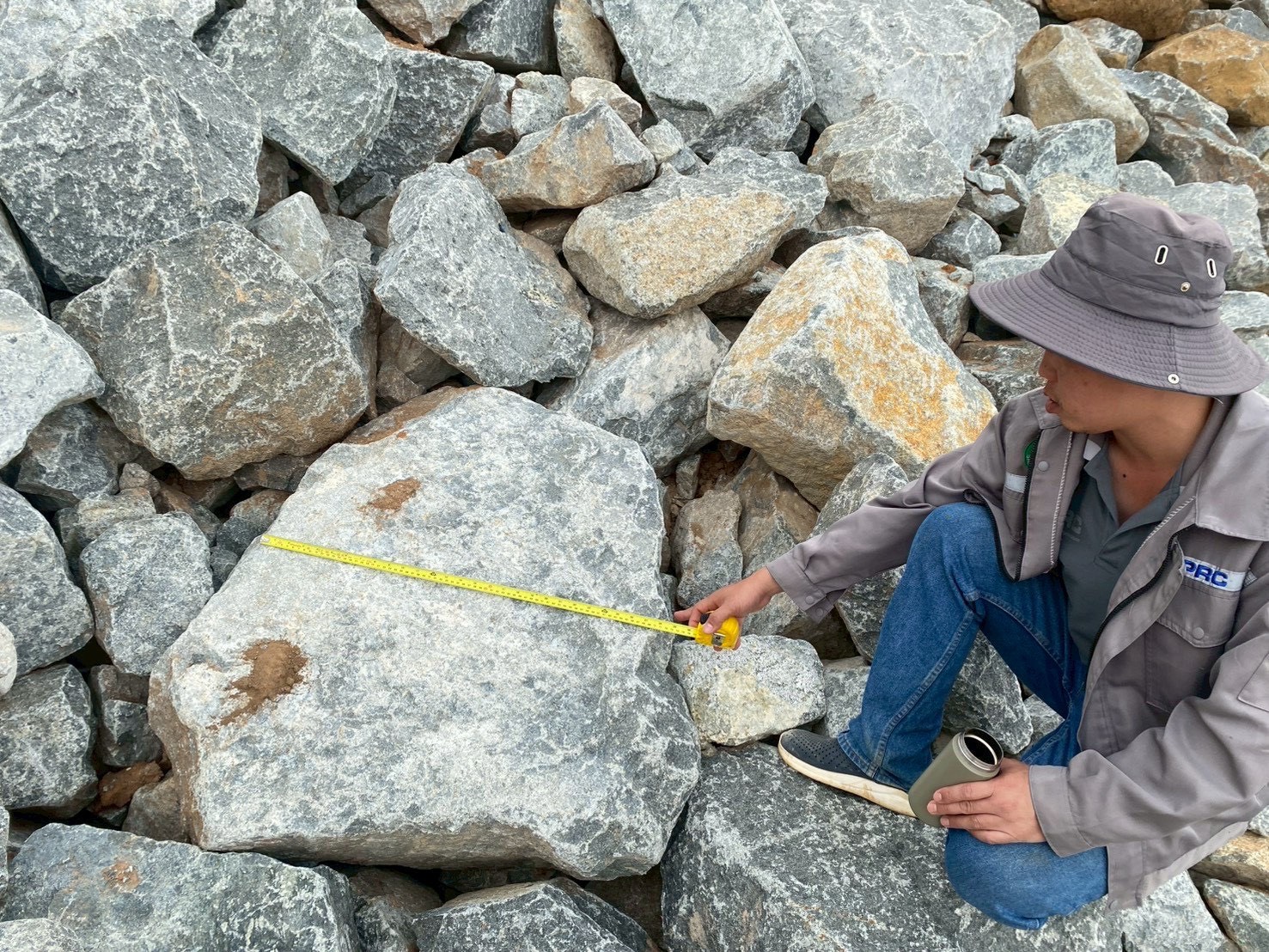

  Comprising 1) Bank Protection Embankment Works Embankment Crest Length: 2,538 Meters Crest Elevation: +96.100 Meters, Including Guardrails Embankment Face Construction: - Driving Of 0.26 X 0.26 X 5.00 M Reinforced Concrete Piles At 1.00 M Spacing, Placement And Compaction Of Saturated Sand Fill - Riprap Placement (Stone Size ≥ 0.35 M) At A 1:1.5 Slope, Extending To The Existing Ground - Riprap Crest Elevation: +91.20 Meters - Hand-Placed Stone Pitching (Stone Size 0.20–0.50 M) With Voids Tightly Filled With Smaller Stones; Slope 1:2.5, Extending To The Embankment Crest 2) Reinforced Concrete Road Works Construction Works Behind The Dam - Sidewalk Paving With Interlocking Concrete Blocks - Reinforced Concrete Curbs And Manholes With Drainage Pipes - Reinforced Concrete Road Behind The Dam (4.50 M Wide, 0.15 M Thick, 2,538 M Long) - 100W LED Lighting Units Mounted On 6-Meter-High Lighting Poles 3) Other Related Works - Drainage System In Front Of The Dam (0.60 M Diameter Pipe, 15.00 M Long) - Reinforced Concrete Stairs - Other Works To Ensure The Components Are Complete And Fulfill The Project Objectives

• Construction Cost :

  160 Million Baht

• Owner :

  Department of Public Works and Town & Country Planning

• Design by :

  Study And Design Group, Department Of Public Works And Town & Country Planning

• Construction by :

  S. Sirichai Co., Ltd.

• Completion Date: :

  21 May 2028
